Derived from German technology and improved, it is energy-saving, efficient, and environmentally friendly.

The self-help patented design of the heat recovery device can save energy by 12% to 15%.

Clean every 3 months.

Intelligent self inspection system for easy maintenance.

Fully automatic PLC control, powerful historical memory system, convenient operation and management.

Technica data

• Finishing woven fabric

• Finishing knitted fabri

• Finishing woven fabric and knitted fabrice

• Nominal width 180cm-320cm

• The minum working width : 60cm

• Available chamer quantity : 8-12F

• The maximum temperature of the chamber : 220C

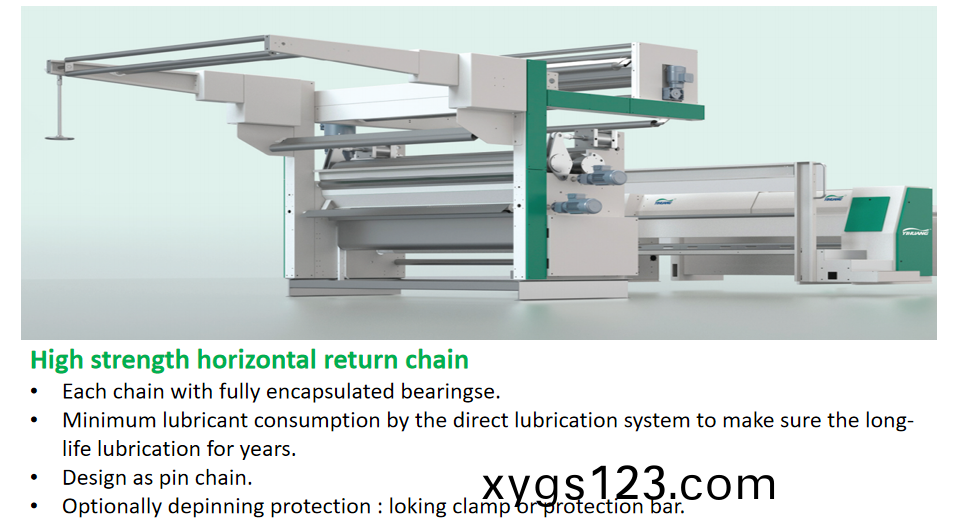

• Fabric delivery chain : high tenacity chain

• Speed : 5-100m / min







The function of stenter

• Dehydration

• Finishing

• Drying

• Curing

• Heat-setting of fhe woven fabric and knitted fabric

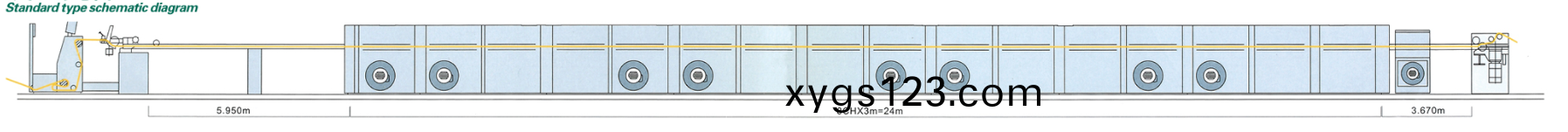

Standard type schematic diagram                            5.95m+(8CH*3m=)24m+3.67m

Nozzle Features

• Adopt double tilting nozzle , makes cloth heated evenly

• Adjust the air volume of the up and down nozzle , makethe cloth is suspended in the air , after processing volume expansion , feel is good

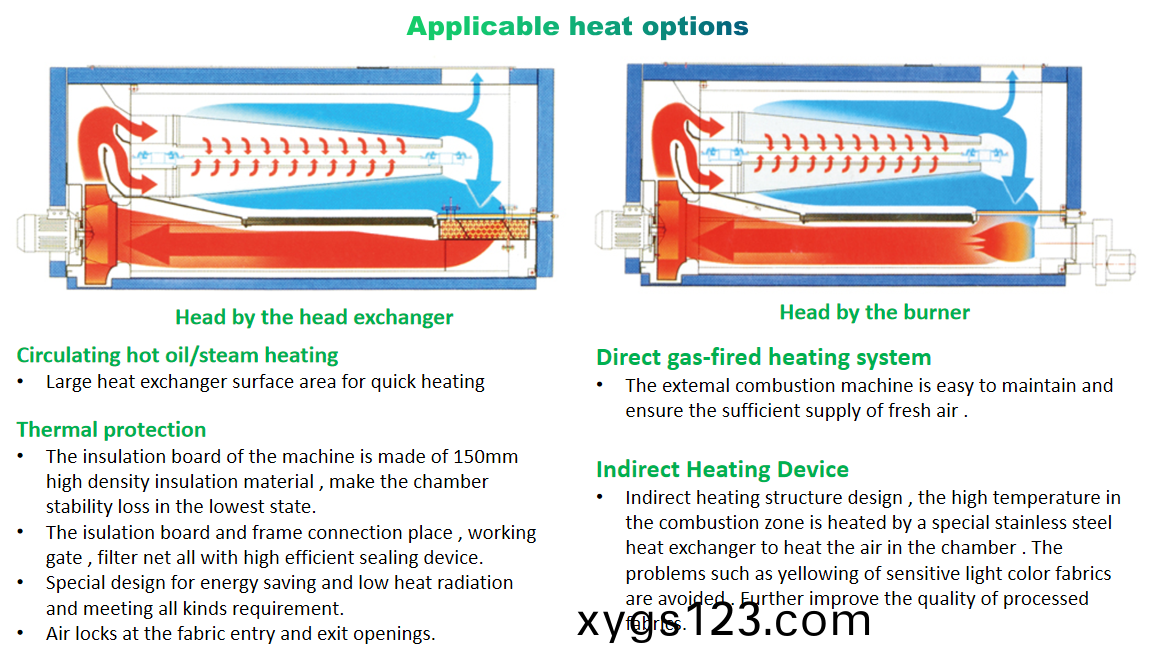

Oven heating device (natural gas)

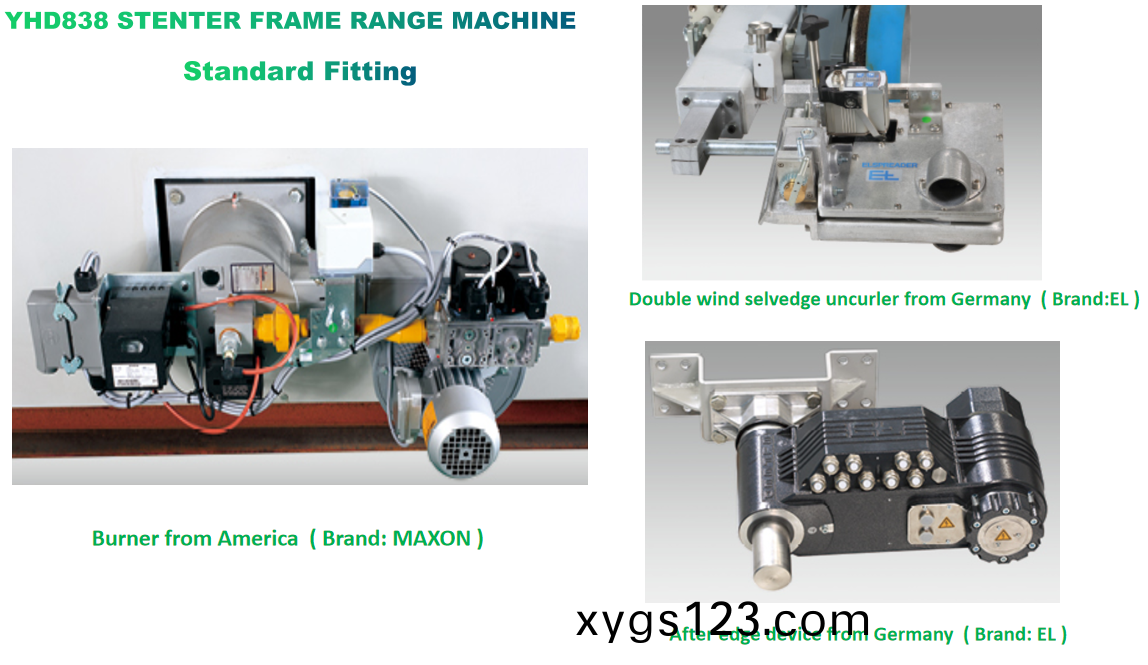

  - 1 burner per box (MAXON)

  - 1 set of temperature control parts per case, each set includes temperature probe, PLC control module, setting temperature and controlling display on touch screen

  - 1 T-type combustion tube per box (special stainless steel)

  - 1 straight burning tube per box (special stainless steel)

  - 1 set of filter, vacuum, electric control valve group per box

Widening cold air device

  - 1 set of widened cooling air nozzle

  - 1 set of cold air source motor [No. 621-5.5kw]

  - Air intake can be manually adjusted

  - The amount of upper and lower air nozzle can be manually adjusted

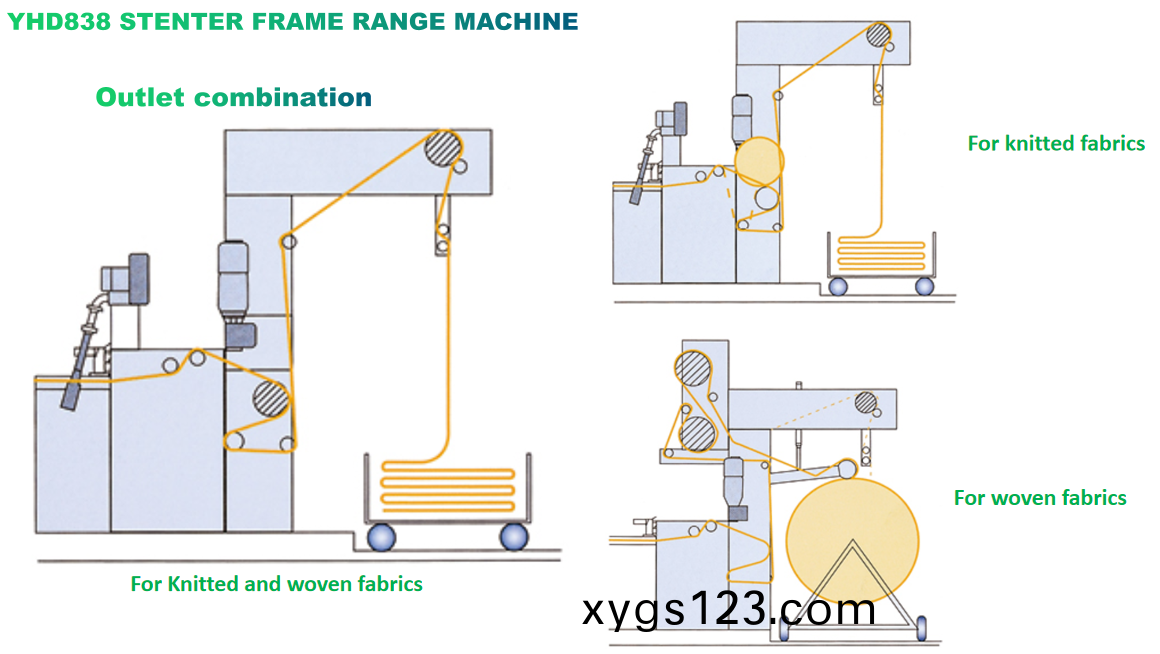

Fabric Exit Assembly

  - 1 set of needle removal plate in front of needle removal roller

  - 2 guide rollers in front of the drawing roller

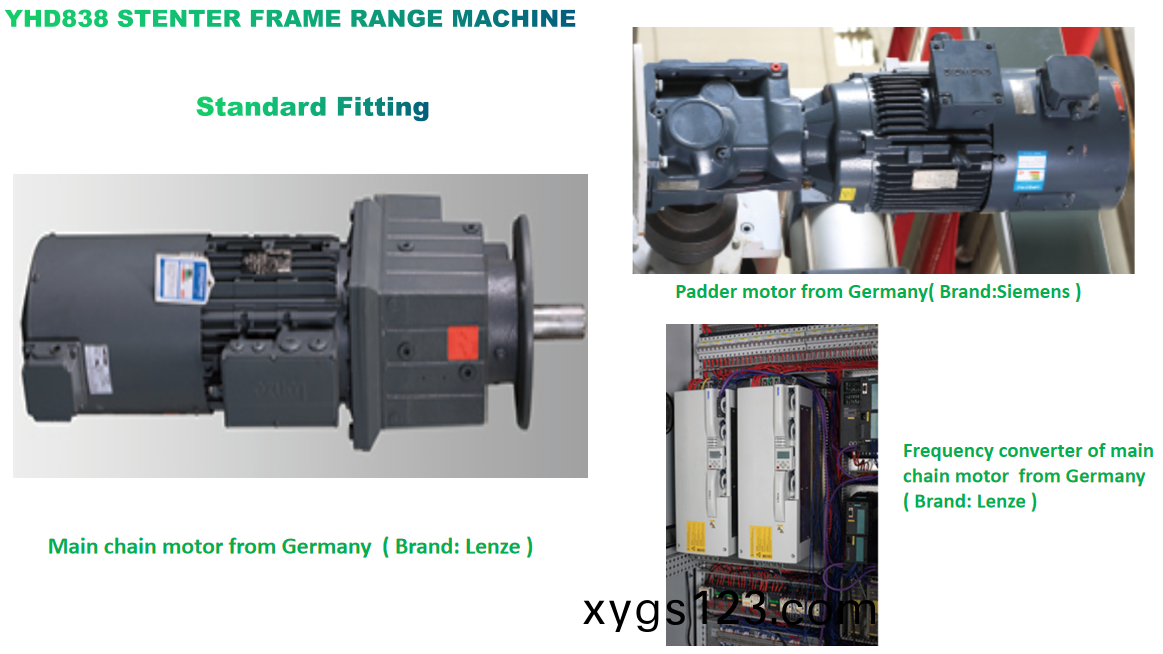

  - 1 drawing roller, 3 kw (Siemens Germany) motor independent drive, equipped with frequency converter

     The output tension is stepless and adjustable

   - 4 cloth guide rollers

   - 1 drop traction roller, 1.5kw(Siemens Germany) motor independent drive, with inverter

     Adjustable tension from out cloth to down cloth

  - 1 set of open width pushing device, 1.5kw(Germany Siemens) motor independent drive, with frequency converter

     The width of open width is adjustable

   - 1 set of high efficiency static elimination device
