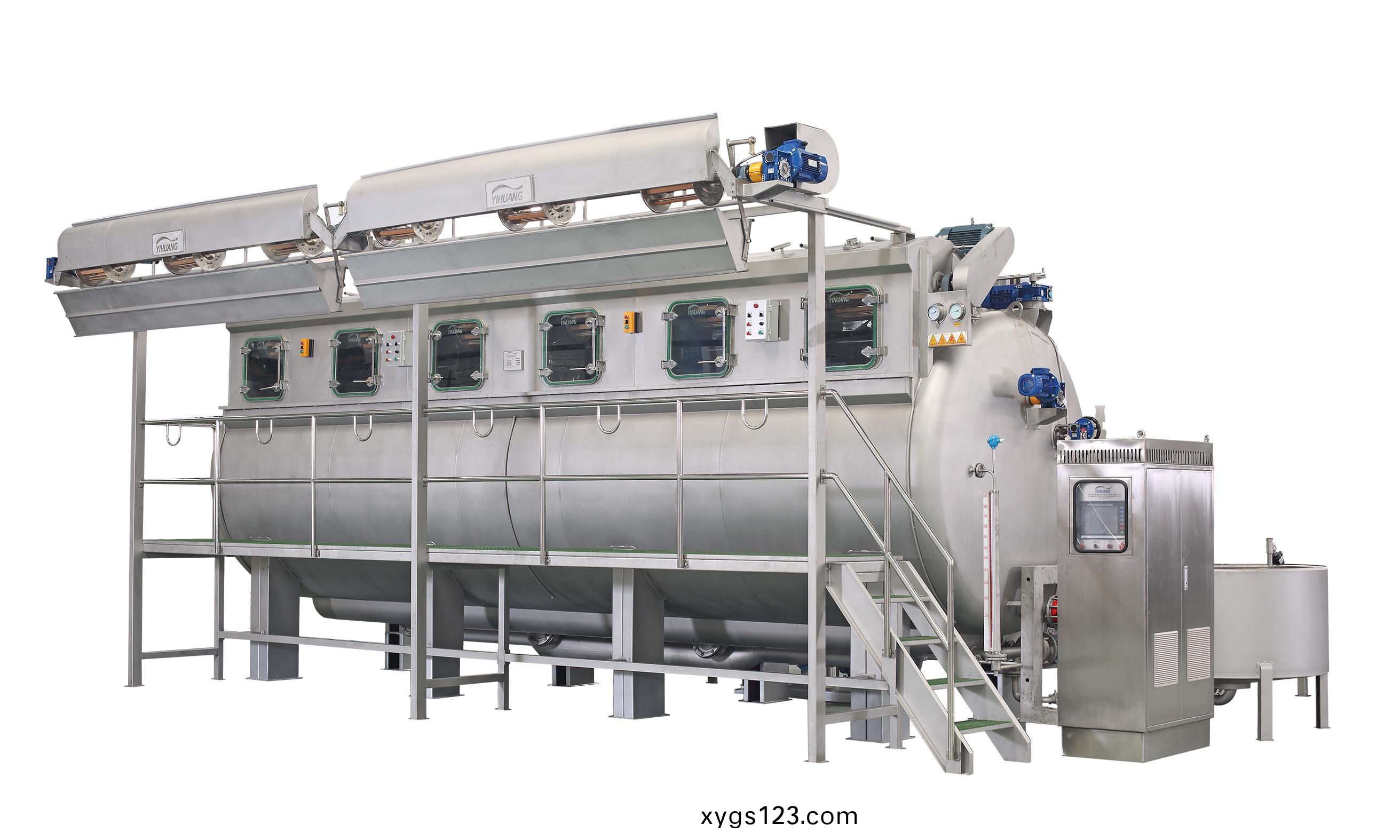

YNL-300D/YNL-350D Normal Temperature Low Liquor Ratio Overflow Dyeing Machine Series
Load capacity: 350Kg/tube
The dyeing bath ratio can reach 1:5
The specially designed feeding system can ensure the even dyeing effect of the fabric while meeting the requirements of low bath ratio.
The design of variable load adjustment for the fabric groove allows for neat stacking of fabrics for both large and small loads, ensuring smooth operation of the machine.
Proportional temperature rise and fall, with a maximum operating temperature of 98 ℃
Compared to traditional dyeing machines, it saves about 50% water and about 40% additives, while significantly reducing wastewater treatment costs and achieving energy-saving effects.
By using independent water supply, the cleaning water pressure can be higher and stronger, and the cylinder can be washed faster and cleaner
主要槼格
型號(hao) | 筦數 | 容量(liang) | 總功率 | 外(wai)形尺寸（長*寬*高） | |||
韆尅 | 磅 | 韆瓦 | mm | in | |||
YNL-350D | YNL-350D-1T | 1T | 350kg | 770 | 12.42 | 3200*5080*3735mm | 126*200*147in |
YNL-350D-2T | 2T | 700kg | 1540 | 19.17 | 4570*5155*3735mm | 180*203*147in | |
YNL-350D-3T | 3T | 1050kg | 2310 | 28.82 | 6300*5385*3785mm | 248*212*149in | |
YNL-350D-4T | 4T | 1400kg | 3080 | 33.72 | 8100*5385*3785mm | 319*212*149in | |
YNL-350D-6T | 6T | 2100kg | 4620 | 50.9 | 10970*5485*3885mm | 432*216*153in | |
YNL-350D-8T | 8T | 2800kg | 6160 | 62.1 | 13615*5485*3885mm | 536*216*153in | |
Programmable metering water supply system, precisely quantitative dosing system,control of fabric's cycle time and adjustable nozzle pressure ensure the reproduction quality of fabrics.
Due to low liquor ratio,fabric brings less water when running in the machine,that reduces fabric weight,reduces fabric tension and fuzziness caused by running.As these results,fabric surface quality was improved and reduce the shrinkage rate.
1 ton cotton fabric dyeing cost 56-60 ton water, which saves 50% of water and over 40% of auxiliaries and steam.
